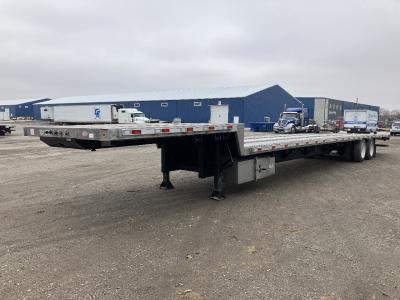

SOLD - 2023 Dorsey Sliding Spread (Tandem Axles) Drop Deck Trailer: Length 53'
Dorsey
Description
fet Included and Prices are fob the Factory
CAPACITY Standard Beam Pkg - 80,000 gvwr (60,000 in 10' Span)
OVERALL length 53' - Base Weight 11,680#
UPPER deck length 10'6"
LOWER deck length 42'6"
OVERALL width 8' 6"
KING pin setting 24" - Tapered Front
UPPER coupler plate 1/4"
UPPER coupler height 48"
FRONT skirt Alum Front and Corners rear skirt Aluminum
BULKHEAD None
MAIN frame 26" Fab.-PreCamb.I-Beams-(80K Pkg)
SIDE rails 6"-Alum-Extruded W/Double L Track
TOP deck floor sills 4" Steel I-Beam - 18" O.C.
LOWER deck floor sills 4" Steel I-Beam 12" O.C. Hd Pkg
COIL haul package Single Coil Placement - 5 Extra Stud Sills-Ctr On Trailer
FLOOR decking 1-1/8" hd Aluminum W/4 Nailer Boards
WINCHES 12 double L (+)#75
WINCH track Double L Aluminum - Extruded Siderail R/S Only
Tie Bar Curb Side - Full Length - 3/8" x 2"
STRAPS None
LANDING gear Two Speed
SUSPENSIONS Air Ride-Hendrickson Intraax - 23K 2 Axle - RAS
SUSPENSION location R.A.S.- Cal Legal (Center of kp to Center of Rear Axle 40' in Closed Position)
AXLES (2) 22.5K Cap.- Type 30 Chambers - Auto Slacks - abs - 22.5 Tires (1463#)
AXLE spacing 10'2" Wide Spread/ ras - cal Legal(49")
LIFT axle None
DUMP valve Elect.-Wired Thru AUX 7way Plug @ Front of Trailer-Dump Rear Axle(+9#)
PARKING brakes All Axles
ABS system abs System 2S/1M
DUST sheilds None
WHEELS Disc - Hub Pilot-22.5 (2-AX)-Polish aluminum 4 Outside Wheels(4-Steel Inside)
TIRES 255/70R 22.5 - 41" Loaded Deck Height - Double Coin
TIRE inflation system None
ANTI-SAIL mud flaps Behind All Axles
STAKE pockets 24" O.C. & 5 Across Rear
SPOOL Triangular Shaped
RUB band alum 3/8" x 3" - Aluminum - Recessed for dot Tape
DOCK bumpers Rubber Inboard
CARGO tie down 14 Pair of Recessed Chain Ties Evenly Spaced
LIGHTS Sealed Wiring Harness - 2 Micros Per Side & Mid Turn 3/3/3 Rear
Composition: Combination
Lift Axle: None
Combination: Yes
Floor Material: Aluminum
Winch Qty: 12
Coil Package
| Item #: | 23DO037 |
| Price: | $50,500.00 |
Category: | Drop Deck |
Length: | 53' |
Axle: | Sliding Spread (Tandem Axles) |
Suspension: | Air Ride |
Weight Rating: | 80000# |
Item Location
Call for Information
Specifications
| Item #: | 23DO037 |
| Price: | $50,500.00 |
| Category: | Drop Deck |
| Length: | 53' |
| Axle: | Sliding Spread (Tandem Axles) |
| Suspension: | Air Ride |
| Weight Rating: | 80000# |
| VIN: | 7KYDC5326PED34691 |
| Vehicle Info: | 2023 Dorsey DC53-ASY-AB60 |
| Width: | 102" |
| Wheels: | Aluminum Outer |
| Tires: | 255/70R22.5 New |
| Brakes: | Air New% |
| Side Height: | 42.6" |
| Pin type / setting: | 24" |
| Frame or Frameless: | Steel |
