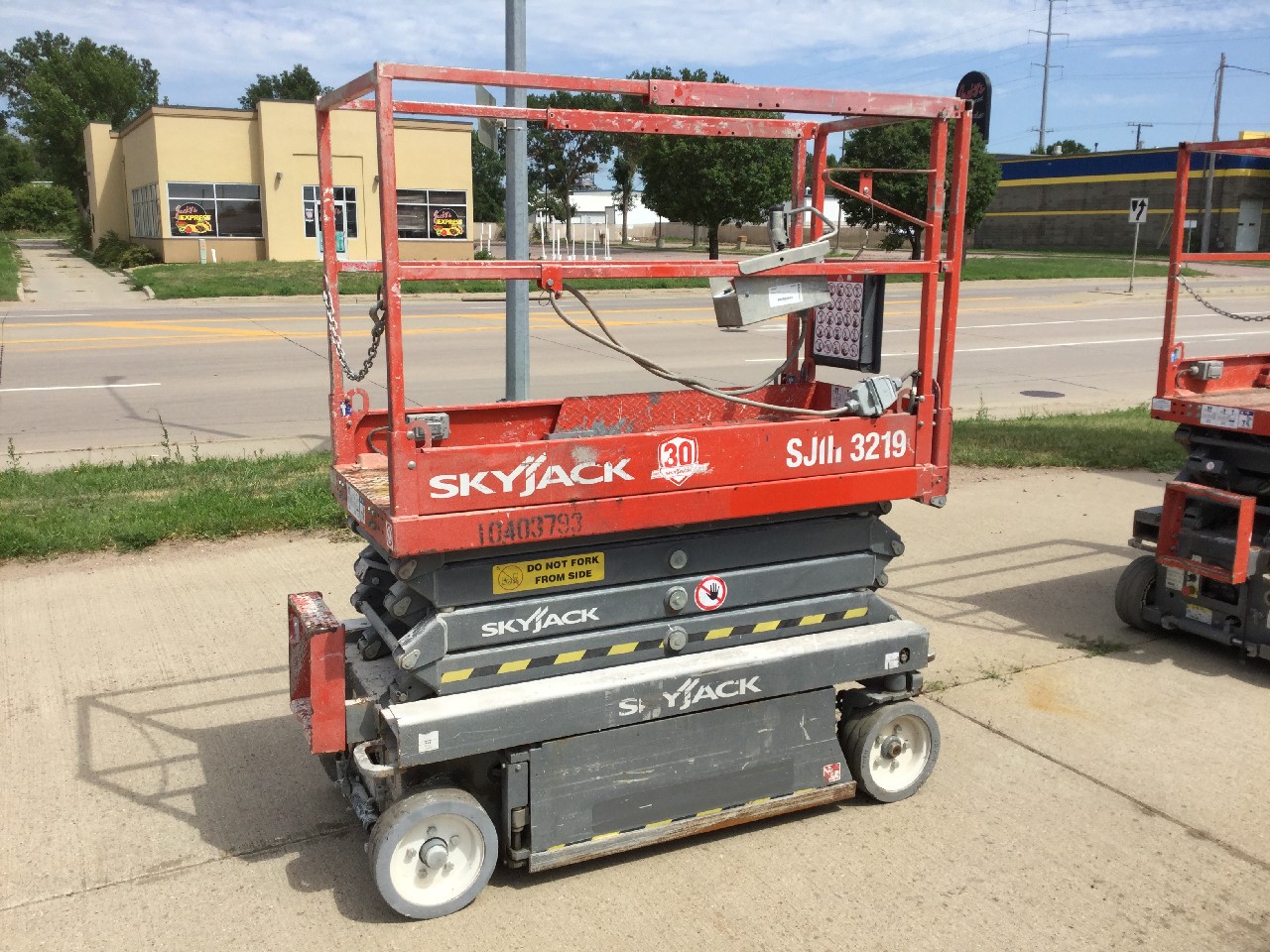

2015 Skyjack SJIII 3219 Equipment Unit: Scissor Lift

Description

Work Height 25' (7.62 m)
Raised Platform Height 19' (5.79 m)
Lowered Platform Height 39" (0.99 m)
Overall Width 32" (0.81 m)
Overall Length 70" (1.78 m)
Stowed Height (Rails Up) 78.5" (1.99 m)
Stowed Height (Rails Down) OPT 64.5" (1.64 m)
Platform Width (Inside Dimension) 26" (0.66 m)
Platform Length (Inside Dimension) 64" (1.63 m)
Extension Deck (Roll Out) 3' (0.91 m)
Ground Clearance (Stowed) 2.375" (6.03 cm)
Ground Clearance (raised) 0.7" (1.78 cm)
Wheelbase 55" (1.40 m)
Weight 2,580 lbs (1,170 kg)
Gradeability 30%
Turning Radius (Inside) 0
Turning Radius (Outside) 66" (1.68 m)
Lift Time (With Rated Load) 25 sec
Lower Time (With Rated Load) 29 sec
Drive Speed (Stowed) 2 mph (3.2 km/h)
Drive Speed (Raised) 0.7 mph (1.1 km/h)
Maximum Drive Height Full Height
Capacity 550 lbs (249 kg)
Distributed Capacity (Main Platform) 300 lbs (136 kg)
Distributed Capacity (Extension Deck) 250 lbs (113 kg)
Local Floor Load (With Rated Load) 110 psi (759 kPa)
Overall Floor Load (With Rated Load) 201 psf (10 kPa)
Maximum # of Persons 2
Wind Rating 28 mph (12.5 m/s)
Tire Type Solid, N/M
Tire Size 12 x 4 x 8

Item #: 15RE024
Price: $9,900.00

Category:

Scissor Lift

Hours: 152
See more details
Item Location Sioux Falls, SD
Call Us 888-940-5030 Email Chat Share Add To Cart
$9,900.00
2015 Skyjack Sjiii 3219

Specifications

Item #: 15RE024
Price: $9,900.00
Category:

Scissor Lift

VIN:22084662
Vehicle Info:

2015 Skyjack SJIII 3219

Hours: 152
Fuel Type:

Electric

Hours:

152

Drive:

Front Wheel

Front Tires:

Solid N/M

Rear Tires:

Solid N/M

Controls:

Joy Stick

Reach:

19 ft.

Lift Capacity:

500 lbs.
