2025 ASV VT80 Equipment Unit: Skid Steer

2025 ASV VT80 Skid Steer - All Weather Premium Plus Hydraulic Skid Steer w/Back-up Camera
(Call for Pricing)

Operations:
Loader Arms: Vertical
Operating Weight 8,955 lbs
Rated Operating Capacity @ 35% 2,800 lbs
Rated Operating Capacity @ 50% 4,000 lbs
Ground Pressure 3.9 psi
Engine Powe r74.3 hp
Shipping Weight 8,221 lbs
Tipping Load 8,000 lbs
Travel Speed, Maximum - 1st Speed 6.1 mph
Travel Speed, Maximum - 2nd Speed 9.1 mph
Height to Bucket Pin 126.5 in.
Dump Height at Bucket Discharge 92.1 in.
Rear Angle of Departure 35 degrees
Bucket Roll Back at Ground Level 20 degrees
Ground Clearance 13 in.
Overall Length with Bucket 143 in.
Reach at Dump Height 32 in.

Engine:
Type Diesel, 4-cylinder, intercooled, turbocharged
Model Yanmar 4TN86CHT
Cooling System Belt-driven fan and anti-freeze filled radiator cooling system
Intake Air Cleaner Dual-Stage
Emission Controls Meets all U.S. Epa Tier 4 final standards
Engine Power 74.3 hp
Gross Horsepower 74.3 hp
Torque Peak 194.9 ft-lb
Fuel Tank Capacity 21.4 gal

Drive Train:
Track Type General purpose track constructed of rubber compound with embedded co-polymer cords and all-purpose treads.

Drive System Two hydrostatic direct drive sprockets controlled by single joystick
Track Drive Sprocket Elevated with low-friction, replaceable sprocket rollers
Undercarriage Suspension Two independent torsion axles per undercarriage
Roller Wheels 12 high-density polyurethane and rubber wheels per track. Wheels include sealed bearings
Track Width 17.7 in.
Length of Track on Ground 64.5 in.
Ground Contact Area 2,283 in.2
Front Roller Wheels 14 in.
Rear and Middle Roller Wheels 10 in.

Auxiliary Hydraulic:
Controls Intermittent via joystick button or continuous via console switch
Couplers 1/2 in. Flat Face Couplers
Cooling System: High efficiency side-by-side radiator and oil cooler
Auxiliary Pump Low Flow: 24.7 gpm
Auxiliary Pump High Flow: 34.3 gpm
Maximum System Pressure 3,771 psi

Electrical System:
Outlets:1 - 12 V inside operator station
Wiring: Pre-wired for all factory-available accessories
Nominal Charge 12 V
Battery 800 CCA
Alternator Charging System 80 amp

Operator Station:
Seat: Vinyl seat with built in operator presence switch, Operator Manual pouch, and 2 in. (51 mm) wide seat belt, adjustable position seat optional

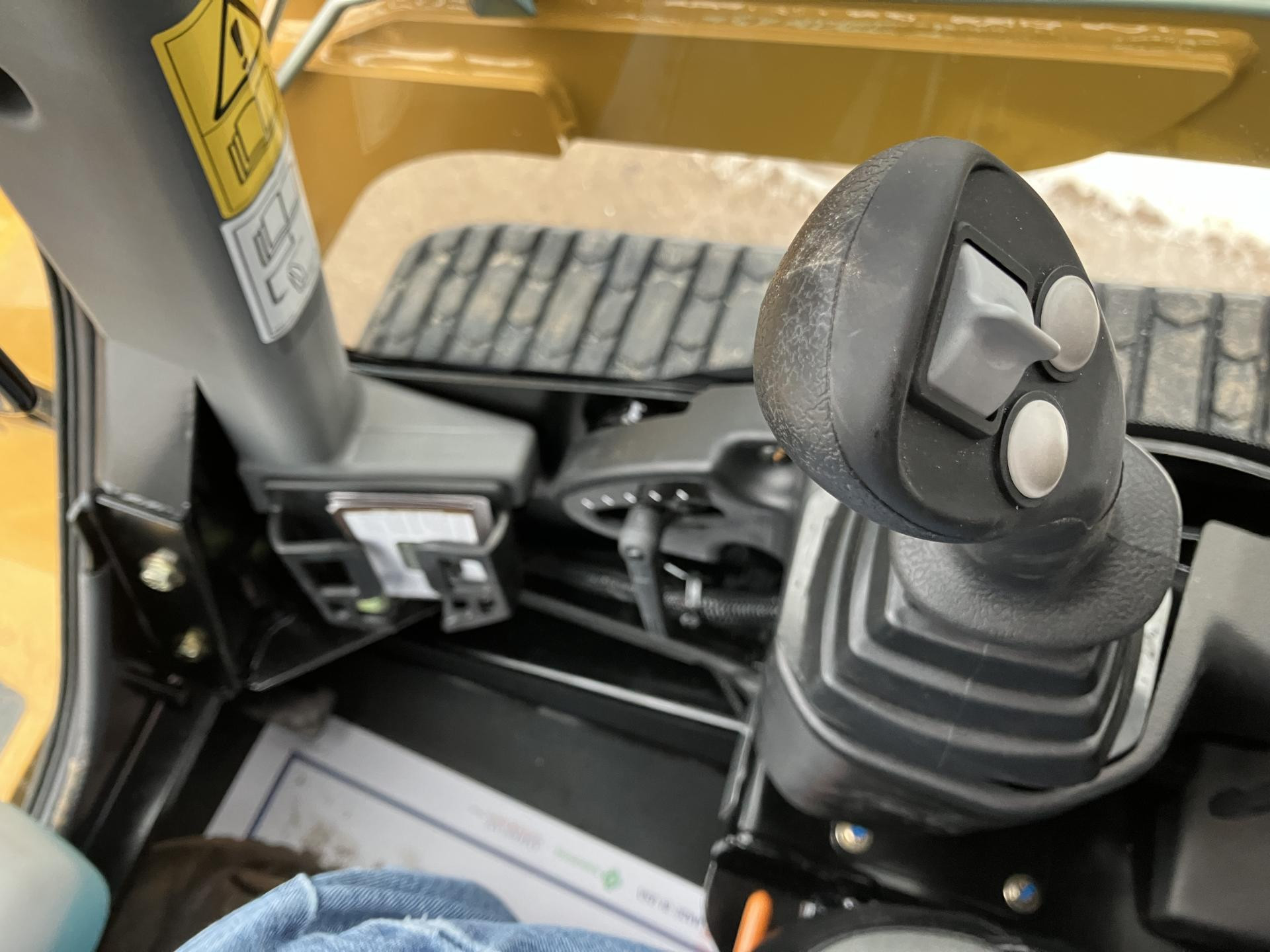

Controls: Electronic joystick controls with iso or H pattern settings, adjustable operator profiles and speeds
Engine Speed Hand-operated dial, foot throttle optional
Machine Display: Engine rpm, engine oil pressure, hydraulic oil high temperature, engine coolant temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging.
Deluxe Display Includes 7 in. Color touch screen, integrated rear view camera, password protection with user profiles, job clock, maintenance schedules
ROPS Restraint-ISO 6683, sae J2292, Cal osha 1596, iso 3471
FOPS Meets iso 3449: Level I and ii (Optional)
Illumination: 2-Fixed forward-facing led lights; 2-Adjustable rear-facing led lights; 2-LED side lights (optional); 1-Interior light
Convenience: 12 V power port

Standard Features: Horn, backup alarm, cup holder, phone holder, behind seat storage, rear view mirror, lap bar, roof escape hatch, roof panel & rear cab windows. Premium Features: Adjustable joystick & arm rest positions, adjustable directional & air flow hvac vents, radio with Bluetooth & usb, frameless front door, attachment control kit, wiper/washer, beacon switch/outlet, easy-off door
