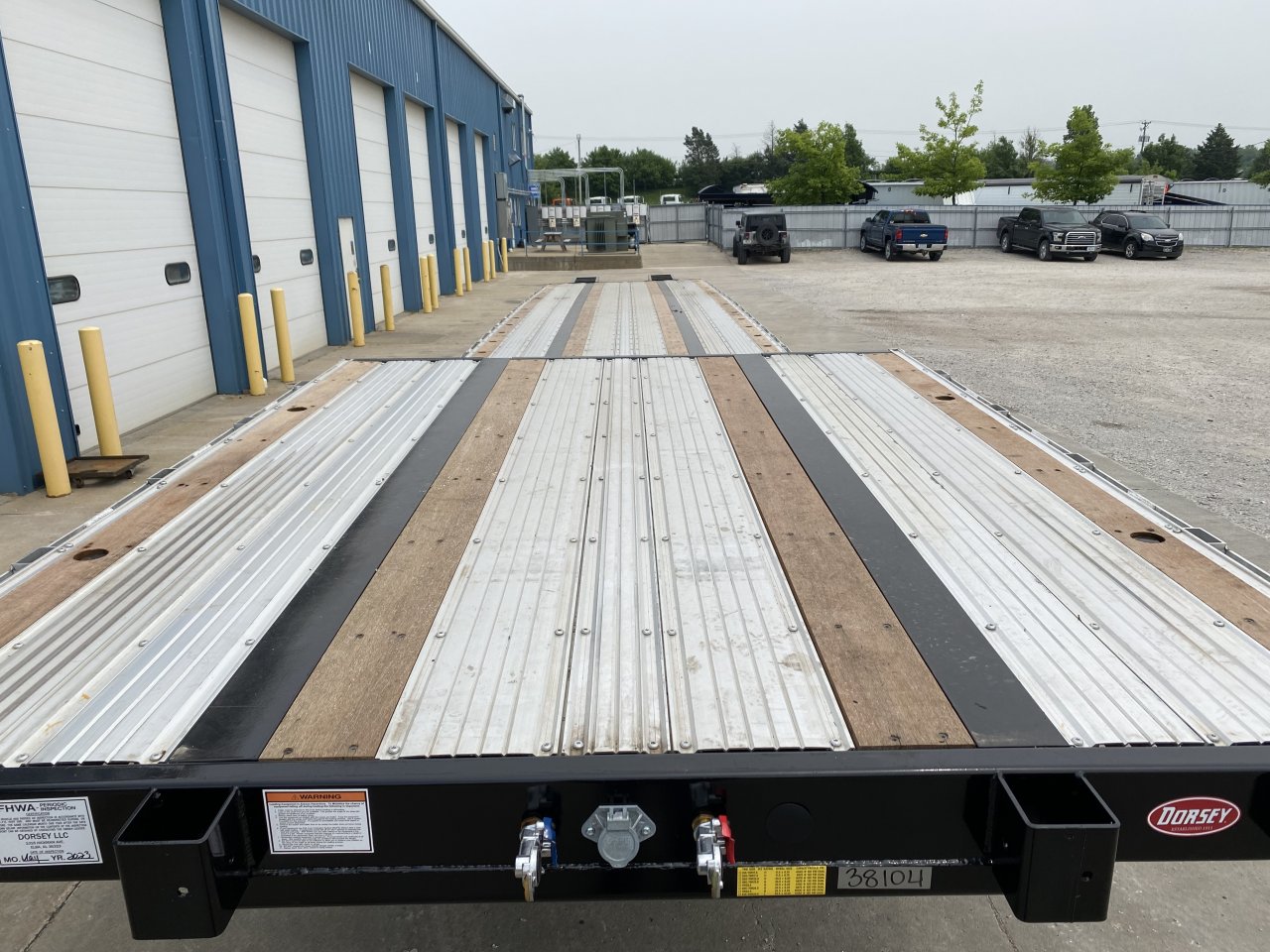

2024 Dorsey Spread (Tandem Axles) Drop Deck Trailer: Length 53'
Description
fet included and Priced fob the Factory
CAPACITY Standard Beam Pkg - 80,000 gvwr (60,000 in 10' Span)
OVERALL length 53' - Base Weight 13,000# - Including Length of Beavertail
UPPER deck length 10'6"
LOWER deck length 38'1"
DOVETAIL 53.13" - Steel Smooth Plate & Traction Bars
OVERALL width 8' 6"
KING pin setting 24" - Tapered Front
UPPER coupler plate 1/4"
UPPER coupler height 48"
MAINFRAME 26" Fab.-PreCamb.I-Beams-(80K Pkg 3/8"x 5" Top & 1/2" x 5" Bottom & 3/16" Web)
BULKHEAD None
SIDE rails 6"-Alum-Extruded W/Double L Track
TOP deck floor sills 4" Steel I-Beam - 18" O.C.
LOWER deck floor sills 4" Steel I-Beam 12" O.C. Hd Pkg
COIL haul package Single Coil Placement - 5 Extra Stud Sills-Ctr On Trailer
FLOOR decking 1-1/8" hd Aluminum w/ 4 Nailers
WINCHES 12 Double L
WINCH track Double L Aluminum - Extruded Siderail R/S Only
STRAPS None
LANDING gear Two Speed
SUSPENSIONS Air Ride - Cush - CP25U - 2 Axles
SUSPENSION location King Pin to Center of Rear Axle 43'
AXLES (2) 25K Capacity - Type 30 Chambers - Auto Slacks - abs - 22.5 Tires (1463#)
AXLE spacing 10'2" Wide Spread
DUMP valve Manual-Position In Rear Skirt Gusset D/S-Dump All Axles
LIFT axle None
SCALES None
PARKING brakes All Axles
ABS system abs System 2S/1M
DUST sheilds None
WHEELS Disc - Hub Piloted - 22.5- Steel, Outer Alum
TIRES 255/70R 22.5 - 41" Loaded Deck Height - Double Coin
TIRE inflation system None
STAKE pockets 24" O.C. & 4 Across Front
ANTI-SAIL mud flaps Behind All Axles
SPOOL Triangular Shaped
RUB band steel 3/8" x 3" - Aluminum - Recessed for dot Tape
DOCK bumpers None
LOADING ramps (2)-Spring Assisted
CONTAINER twist locks None
CARGO tie down Recessed Chain Tie Downs - 14 Pair
TIRE carriers None
TOOLBOX material Aluminum
TOOLBOX type 18Hx18Dx60L-Alum Box-Barn Style Double Door-Dia tp Alum Door(+93#)
TOOLBOX location Driver Side- Between Spread
LIGHTS Sealed Wiring Harness w/ led Pkg
Composition: Combination
Combination: Yes
Floor Material: Aluminum
Winch Qty: 12
Coil Package
Beavertail
Ramps
Tool Boxes
| Item #: | 53'DORSEYCBBVT |
| Price: | $56,900.00 |
Category: | Drop Deck |
Length: | 53' |
Axle: | Spread (Tandem Axles) |
Suspension: | Air Ride |
Weight Rating: | 80000# |
Item Location
Spencer, IA
Specifications
| Item #: | 53'DORSEYCBBVT |
| Price: | $56,900.00 |
| Category: | Drop Deck |
| Length: | 53' |
| Axle: | Spread (Tandem Axles) |
| Suspension: | Air Ride |
| Weight Rating: | 80000# |
| VIN: | 53' ALUM DROP DECK |
| Vehicle Info: | 2024 Dorsey DC53-BTR |
| Width: | 102" |
| Wheels: | Aluminum Outer |
| Tires: | 255/70R22.5 New |
| Brakes: | Air New% |
| Pin type / setting: | 24" |
| Double Ridge Straps: | No |
| LED Lights: | Yes |
| Mid Turn Lights: | Yes |
| Length Details: | 53' |
| Frame or Frameless: | Steel |
